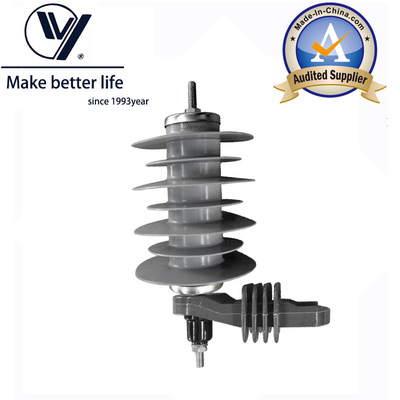

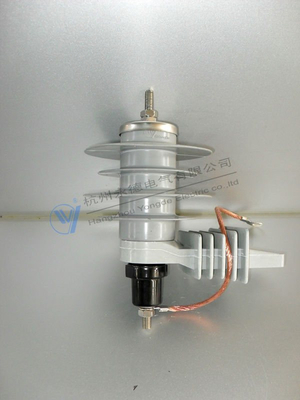

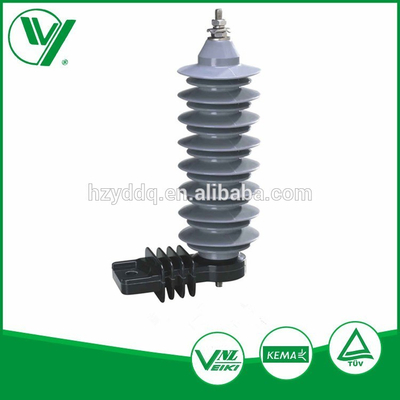

18kV 10kA Zinc Oxide Surge Arrester for Substation

MOQ:	1
Prix:	1

Detail Information

Product Description

Detail Information

Certification:

ISO9001, Kema

Modèle n °:

YH10W5-18

Type d'installation:

Arrêteur en tandem

Cote de tension:

18 kV

Diamètre:

138/108

Hauteur:

194mm

Poids brut:

2,1 kg

Distance de fuite:

596mm

Courant de longue durée:

400A

Tension de choc de foudre:

95/150KV

Matériel:

ZnO

Température de fonctionnement:

-40 à +40 degré

Limite d'altitude:

> 1000 m

Gamme de fréquences:

48Hz à 62Hz

Vitesse du vent maximum:

35m/s

Intensité de tremblement de terre:

7 degrés

Mettre en évidence:

18kV zinc oxide surge arrester

substation lightning arrester 10kA

zinc oxide surge protector substation

Product Description

Medium Voltage 18kv 10ka Composite Zinc Oxide Surge Arrester

Product Specifications

Attribute	Value
Model NO.	YH10W5-18
Installation	Tandem Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Creepage Distance	596mm
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	50000PCE Per Year

Technical Specifications

Voltage: 18KV
Shed diameter: 138/108
Height: 194mm
Gross weight: 2.1kg
Creepage distance: 596mm
Long duration current impulse: 400A
Lightning impulse withstand: 95/150KV

Working Conditions

Environment temperature: -40°C to +40°C
Altitude: <1000m
Rated frequency: 48Hz to 62Hz
Power frequency voltage should not exceed continuous running voltage
Maximum wind speed: <35m/s
Earthquake intensity: <7 degree
Special requirements for contamination areas must be noted in advance
